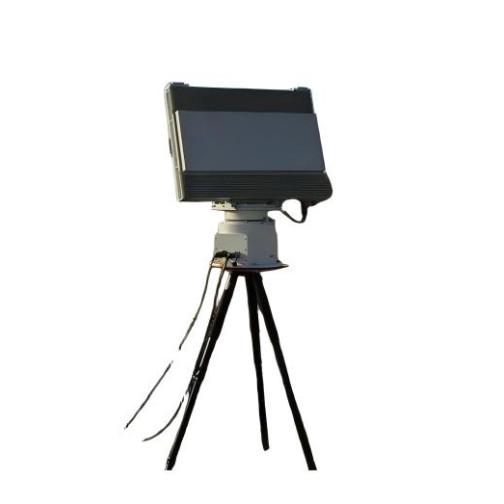

Long distance detection DBF technology Active Digital Phased Array Radar
I. Product Description
Comprising one radar array, one mechanical rotary platform, and one power adapter, this radar is designed for the detection, alerting, and target indication of micro/small civilian drones in key areas such as borders, perimeters, airports, and bases. It can accurately provide the target's azimuth, distance, altitude, and velocity information.
II. Features
1.High Real-time And High-precision
Capable of maintaining high-precision tracking of distant targets to provide effective decision-making basis for users.
2. Strong Environmental Adaptability
Capable of operating in all-weather and all-time conditions, including night, rain, snow, fog, and dusty environments.
3. High Flexibility
Convenient setup for long-distance target detection.
DBF technology: Digital Beamforming (DBF) technology with multi-beam transmission can enhance anti-interference capabilities.
Phased array system: Utilizes advanced active phased array technology to enhance radar detection performance and output three-coordinate target information.
4. High Cost-effectiveness
Through continuous product optimization, it achieves a perfect combination of detection performance, reliability, usability, and economy.
III. Functions
| Long-distance Startup | Supports remote power on and off functions |
| Positioning And Orientation | It has positioning and orientation functions |
| Outgoing Message | Supports access to information such as distance, speed, and Angle of the detected object |
| Multiple Target Tracking | Supports multi-target tracking switching logic |
| Target Fusion Processing Function | Supports multi-sensor data fusion processing |
| Defense Zone Management | The zone can be set flexibly and accurately positioned, and the intrusion alarm can be triggered |
| Capacity Of Resisting Disturbance | The online adjustment capability of detection sensitivity/speed range and the ability to filter abnormal trajectory interference can effectively filter false alarms caused by clutter through the sensitivity and abnormal trajectory filtering functions. |
| Online Monitoring Function | It has remote monitoring capability and can report the status of the equipment in real time; it has online/offline alarm function for the equipment. |
| Remote Monitoring Status | It has remote monitoring capability and can report the status of the equipment in real time; it has online/offline alarm function for the equipment. |
| Self Checking Function | The equipment has online self-test function |
| Adaptive Processing Capability | It has the ability of adaptive clutter processing for moving targets and adaptive clutter processing for clutter maps |
| Linked Functions | Equipped with radar and camera linkage function, the target can be tracked and captured for evidence |
| Multi-site Network Coverage | It has the function of networking multiple devices; it has the ability of multi-site collaborative detection; and it has the ability of near-site fault blindness. |
IV. Specifications:
| Operating Frequency Band | X-band |
| Effective Detection Range | 100m to 5.0km (for drones with RCS ≥ 0.01㎡) |
| Azimuth Coverage | 360°, elevation angle 40° |
| Detection Speed | 1.8km/h to 270km/h |
| Operating Temperature | -45℃ to +55℃ |
| Azimuth Accuracy | ≤0.4° |
| Elevation Accuracy | ≤0.5° |
| Range Accuracy | ≤10m |
| Speed Accuracy | ≤0.5m/s |
| Data Rate | ≥0.5Hz (antenna rotation speed 30rpm) |
| Data Interface | RJ45/100Mbps Ethernet |
| Power Input | ≤400W (consumption) AC200-AC240 (input) |
| Weight | ≤77kg (entire unit) |
